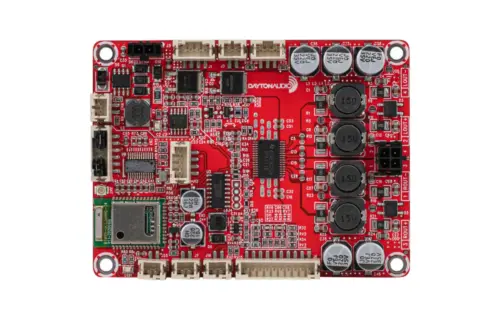

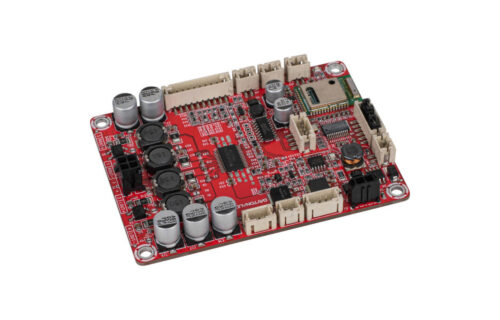

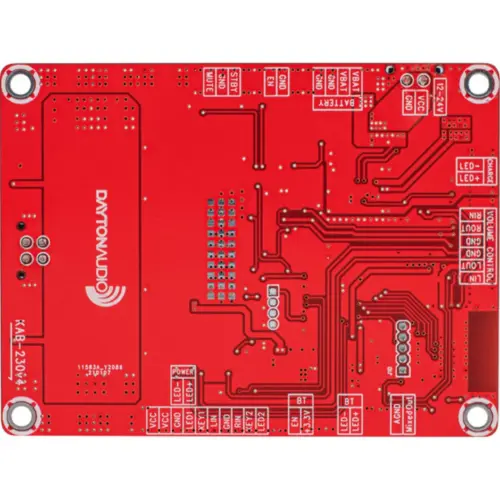

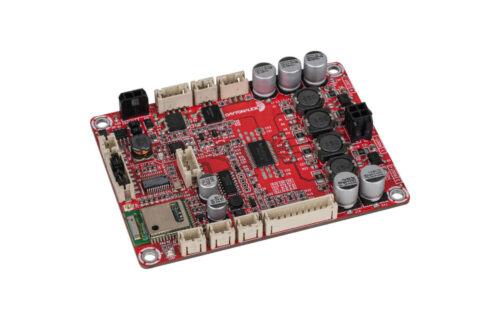

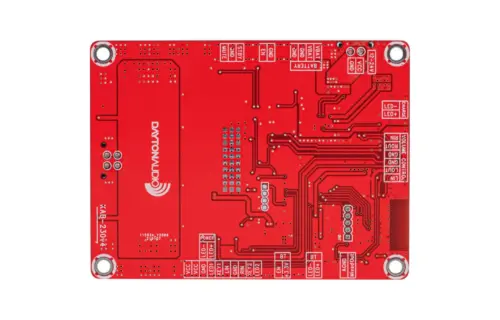

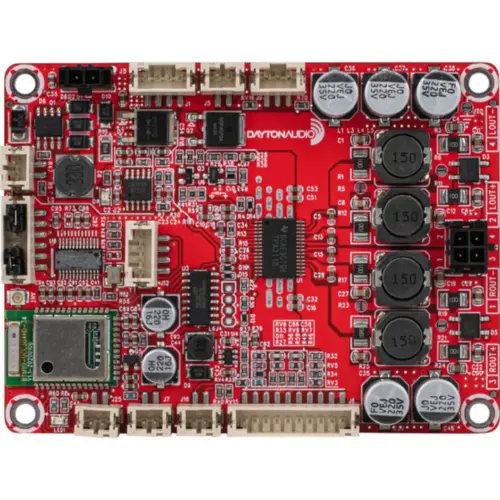

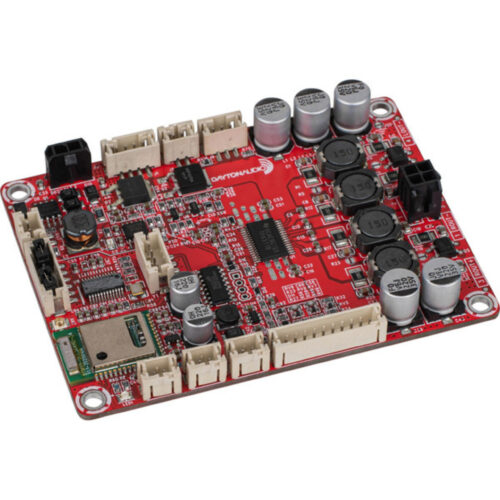

Modul Amplificator Dayton Audio KAB-230v4
sistem de rate online
plată cu cadrul Edenred în magazin
plăți cu Cardurile și Tichetele Sodexo
plăți în rate prin Netopia- Descriere
- Specificații
- Informații suplimentare
- Sfaturi practice
- Producător
- Recenzii (0)
Descriere
The Dayton Audio KAB-230v4 Bluetooth Amplifier Board makes it quick and easy to add audio to your project, speaker build, point-of-purchase display, kiosk, or any location where music or sound enhances the experience. With an output of 2 x 30 watts, there is more than enough power to drive stereo speakers, yet the board is small enough to integrate into nearly any project.
Highlights
- Efficient 2 x 30 watts of power from the TPA3118 amp chip
- Bluetooth 5.0 with aptX HD built directly into board – no need for a separate module
- Add programmable sound customization with the free KABX software via the KPX programmer board (sold separately)
- Wire harnesses make installation quick and simple with no soldering required – includes power and speaker cables
- Separate ports for powering by battery or direct DC input from a power adapter
- Optional accessories expand functionality and more
Product Details
Dayton Audio KAB-230v4 2 x 30W Class D Audio Amplifier Board with aptX HD Bluetooth 5.0
The Dayton Audio KAB-230v4 Bluetooth Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient TPA3118 Class D amplifier chip. The TPA3118 operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.
Unlike other amplifier boards, the Dayton Audio KAB-230v4 includes a built-in Qualcomm Bluetooth 5.0 module with aptX HD and DSP programing option with KPX board (sold separately). The advantage of Bluetooth 5.0 is its low power consumption which prolongs the playtime of battery powered builds. The streaming audio quality rivals that of CDs since the Bluetooth chip supports aptX, aptX HD, aptX LL, SBC & AAC. High receive sensitivity with RF power up to 9 dBm and -90 dBm, and on board antenna insure stable wireless connectivity up to 15m (50ft.) On board external antenna jack enables the KAB board to be mounted in a metal enclosure with an external antenna (sold separately). Designed and built for Bluetooth demonstration purposes, this fully functioning module provides a turn-key approach to Bluetooth certification for consumer goods. If the application of this board is for the hobbyist or industrial purposes then nothing is required to enjoy the full convenience of pairing and streaming high quality Bluetooth audio. The KAB-230v4 is also CE and FCC ready for certification purposes.
Due to the overall audio performance and built-in Bluetooth with DSP Programing option, this amp board has almost endless application possibilities.Included with the KAB-230v4 are two wire harnesses: one for DC power and the other for connecting to stereo speakers. For many users, these cables are all that is needed to complete a project. Since they have additional on board connectors with wiring harnesses (sold separately) available to speed-up installation and create confident connections, there is no need to solder or troubleshoot loose and unstable contacts. Dayton Audio also offers a variety of accessories with robust features to make installation even easier.
From hobbyists and DIYers to manufacturers and installation organizations this Bluetooth amp board has immense flexibility. For orders greater than 20 units, custom OEM Bluetooth pairing names are available – email info@daytonaudio.com for more details. Even if you bypass the Bluetooth feature, this amplifier board integrates easily into any job because of its array of included and optional wiring harnesses.
Extreme Low Standby Power
The Dayton Audio KAB-230v4 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).
The Dayton Audio KAB-230v4 features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable.
For portable applications, there is an optional function cable kit (KAB-FC) which permits the connection of rechargeable batteries to power the board. NiMH, lead acid, or NiCad batteries will recharge straight from the board using a 15~24 VDC, 1A power supply. Use extreme caution because the Bluetooth amp board does not provide under/over charge protection and the connected power adapter cannot have an output greater than 30 watts.
Solar charging is also an option; this application requires solar batteries with float (open) voltage with 16.5 to 21.5 VDC, and 20 to 100 watt panel. Eight AA alkaline batteries can also power this board, but do not connect the recharging feature for this type of use.
Multiple Power Paths
The best rechargeable battery option makes use of a separate interconnect board from Dayton Audio (KAB-BE) which holds three 18650 Li-Ion batteries. This portable power source is highly recommended since this add-on battery holder board does provide under/over voltage protection. A 19 VDC, 1-5A power supply is your best choice for charging the expansion board. (15 VDC Min required and 24 VDC Max).
Package Includes
- One Dayton Audio KAB-230v4 Bluetooth Amplifier Board
- One 2-conductor power cable 20″
- One 4-conductor speaker cable 20″
- One Bluetooth pairing reset push button switch with cable 20″
Article numberKAB-230
EAN0848791007989
Rated power output2 X 30W @ 4 ohms
Signal-to-noise ratio (SNR)92 dB
Frequency response22 to 22,000 Hz (±3 dB)
Input impedance4-8 ohms
Power Requirements12 to 24 VDC, 4A
Dimensions (L x W x H)3.6″ L x 2.7″ W x 0.9″ H
Mounting hole spacing3.32″ x 2.4″ (84 x 61 mm)
Mounting hole diameter0.14″ (3.5 mm)
Informații suplimentare
| Producător | |
|---|---|
| Disponibilitate | La Comandă * Se aduce la comandă in 3-6 zile. |
| Unitate Pret | Bucata |
Explicatii in ceea ce priveste rodajul echipamentelor, cat si al cablurilor, asezarea optima a echipamentelor in camera de auditie, importanta acusticii camerei si nu in ultimul rand sistemul de alimentare a intregului echipament:
PENTRU BOXE:
- Pentru performante optime este necesara pozitionarea boxelor la o distanta de minim 30-40cm de peretele din spate pentru boxele cu bass-reflex in spate, pentru cele cu bass-reflex in fata, recomandam pozitionarea la o distanta de 10-20cm fata de peretele din spate, dar totodata la o distanta de cel putin 50cm fata de peretii laterali. Tineti cont de faptul ca orice piesa de mobilier din incapere, joaca rol de absorbtie fonica, dar si de difuzie fonica daca acestea din urma sunt din materiale ceramica sau oglinzi, geamuri sau alt material reflectorizant. In acest sens, gasiti pe blogul nostru, multiple articole care va pot ajuta
- Boxele vor ajunge sa functioneze in parametrii recomandati de producator, dupa minim 50 de ore (ideal 100 ore) de functionare la volum mediu. In aceasta perioada de timp, de “rodaj a boxelor”, sunetul va fi la inceput mai artificial, bass-ul nu va fi inca controlat, inaltele rigide iar vocile usor retinute, pe masura ce boxele vor functiona, veti remarca cum bas-ul devine mai controlat, mai prezent si mai voluminos, vocile si sunetele medii devin naturale si mai echilibrate, iar inaltele devin rafinate si detaliate. Exista boxe care necesita un „rodaj” mai amplu de minim 300 de ore mai ales in cazul celor care au difuzoare de kevlar, carbon sau alte materiale de acest tip. Boxele care se „rodeaza” cel mai repede sunt cele care au difuzoare de celuloza.
Imbunatatirea sunetului unui sistem audio stereo (Partea I)
Imbunatatirea sunetului unui sistem audio stereo – (Partea II)
PENTRU AMPLIFICATOARE, DAC-URI, PREAMPLIFICATOARE, RECEIVER STEREO & HOME CINEMA, SURSE DIGITALE AUDIO-VIDEO:
- Pentru performante optime este necesar „rodarea” echipamentului, In functie de complexitatea componentelor din aparatul dumneavoastra acesta poate dura intre 30-200 ore.
- Rodajul se face la volum minim, fiind astfel suficient faptul ca acesta este alimentat corect conform manualului de utilizare la 220-230 Volti si trece semnal audio sau video dupa caz prin el.
- Echipamentul supus „rodajului” va ajunge sa functioneze in parametrii recomandati de producator, dupa perioada mai sus mentionata. In aceasta perioada de timp, de “rodaj”, sunetul va fi la inceput ceva mai artificial, bass-ul nu va fi inca controlat, inaltele rigide iar vocile usor retinute, pe masura ce echipamentul va functiona, veti remarca cum bas-ul devine mai controlat, mai prezent si mai voluminos, vocile si sunetele medii devin naturale si mai echilibrate, iar inaltele devin rafinate si detaliate.
- In ceea ce priveste echipamentul video precum videoproiector, TV, media player, blueray player, necesita un "rodaj" de cel putin 50 de ore. Lipsa acestuia nu va poate oferi maxim de performanta. "Rodajul" se efectueaza prin simpla utilizare a acestuia, intr-un mod conform specificatiilor mentionate de producator.
PENTRU CABLURI:
- Pentru performante optime este necesara „rodarea” cablurilor, In functie de complexitatea conductorului folosit, cat si geometriei acestuia, „rodajul” poate dura intre 30-100 ore.
- Rodajul se face la volum minim, fiind astfel suficient faptul ca va trece semnal audio sau video dupa caz prin el.
- Cablul supus „rodajului” va ajunge sa functioneze in parametrii recomandati de producator, dupa perioada mai sus mentionata. In aceasta perioada de timp, de “rodaj”, sunetul va fi la inceput ceva mai artificial, pe masura ce cablul va functiona, veti remarca cum bas-ul devine mai controlat, mai prezent si mai voluminos, vocile si sunetele medii devin naturale si mai echilibrate, iar inaltele devin rafinate si detaliate.
Articole indrumatoare:
Tratamentul Acustic si Izolarea Fonica
Pentru un sistem echilibrat, trebuie tinut cont pe langa asezarea corecta a boxelor in incapere, al echipamentelor, sistemul de alimentare al acestora, tinand cont de instalatia electrica a locatiei.
Pentru detalii privind aceste aspecte de rodaj si nu numai, va rugam sa ne consultati!
DaytonAudio - Excelenta pe bani putini
Existamulte marci care reusesc sa propuna pietei produse de buna calitate la preturifoarte accesibile, dar raportul calitate/pret la care ajung inginerii de laDayton Audio depaseste imaginabilul. Cu peste 20 de ani de experienta indomeniu, Dayton Audio a devenit unul dintre varfurile de lance cu care Hi-Fi-ulieftin iese la atac in eterna disputa cu mai marii industriei.
Principiulde la care nu se face niciun fel de rabat este acela de a respecta cele treielemente considerate esentiale: inovatie, valoare, calitate. Misiunea propusaeste aceea de a calibra la milimetru raportul dintre tehnologie si arta, pentruobtinerea unor rezultate sonore imbatabile chiar si pentru clase de pret multsuperioare.
Cuo gama larga de componente audio in portofoliu (boxe, amplificatoare, sistememulticanal, subwoofere, sisteme de prindere etc), compania din Springboro,Ohio, este considerata una dintre cele mai bune pe segmentul de boxe, multedintre seriile purtand marca Dayton Audio primind notele maxime atat din parteajurnalistilor, cat si a utilizatorilor. Dupa cum spune chiar sloganul companiei - awesomely affordable - excelenta pe bani putini.
Recenzii
Nu există recenzii până acum.
