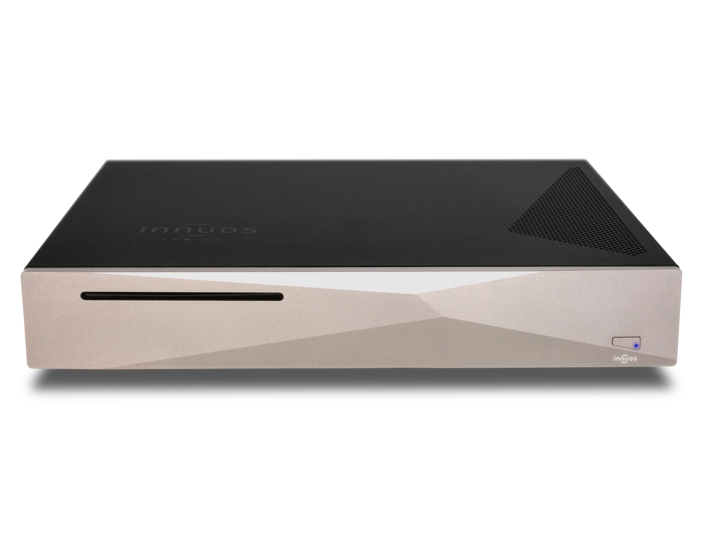

Streamer Innuos ZENith Mk3 1TB SSD

Pushing our popular ZENith even further, the advanced MK3 includes a Triple-Linear PSU with Mundorf CAPS and custom-treated SSD. Ideal for audiophiles who want a smoother, more relaxed sound with a wider soundstage.

Triple-Linear Power Supply

Inspired from the high-end power supply engineering of the SE, the ZENith Mk3 benefits from new premium Mundorf capacitors with ultra-low noise regulators and a medical-grade mains filter to provide even greater audio clarity.

Custom Motherboard

Our own custom-made Innuos motherboard is completely reworked for optimised audio performance. Sources of EMI have been removed and internal clocks optimised, resulting in a “blacker” music background and enhanced realism.

Ultra-low Noise Streamer Output

Dual-ethernet ports with isolation transformers provide an ultra-low noise network connection for your streamer, removing noise from the path and improving sound quality on all network audio.

Anti-vibration and EMI Treatment

New asymmetrical isolation feet derived from our ZENith SE plus added treatment to the chassis help to combat harmful vibration that affect a clean audio signal, with even greater treatment now applied to the SSD.

In-Memory Playback

With 4GB dedicated memory, the ZENith loads music directly to memory for playback so that it doesn’t need to engage the SSD during playback, improving sound quality.

AUDIO OUTPUTS:

USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA

Dedicated Ethernet Streamer Port

CONNECTIVITY:

Ethernet2 x rear panel RJ45 − Bridged Gigabit Ethernet

USB1x USB 2.0 (DAC), 1x USB 3.0 (Backup)

FORMATS:

CD Formats: Red Book

Disc Compatibility: CD, CD-R, CD-RW

Audio format for stored CDs: FLAC (zero compression), WAV

Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)

SAMPLE RATES:

Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , DSD64, DSD128, Native DSD up to DSD512 on selected DACs

Bit Depths 16bit, 24bit, 32bit

USER CONTROL INTERFACES:

Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers

Mobile: App for iPhone/iPad, Android and Windows 10

HARDWARE:

CD/DVD drive: TEAC Slot-loading drive

Hard Drive: 1TB SSD with Vibration and EMI treatment

CPU: Intel Quad Core N4200

Memory: 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)

STREAMING AND CD STORAGE:

UPnP/DLNA Integrated UPnP Server

Streaming Services: Qobuz, Tidal, Radio Paradise, Internet Radio

Roon Compatibility: Roon Core and Roon Endpoint

Average CD Storage Time: 5 minutes

CD Metadata FreeDB, MusicBrainz, Discogs, GD3

Compatible Music Systems: Sonos Multi-room Wireless Music System

DLNA/UPnP compatible devices

USB DACs complying to USB Audio Class 2

USB DACs supporting DSD over DoP protocol

Selected USB DACs supporting Native DSD

REQUIREMENTS:

Network: Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates

Network router with at least one available ethernet port

Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal

Recommended App (USB Connection Only): iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)

POWER:

Mains Supply: 230V AC / 115V AC − Internal Triple-Linear Power Supply

Power Consumption: 12W when idle, 15W peak

DIMENSIONS: 420mm x 340mm x 83mm (W x D x H)

WEIGHT: 9 kg

IN THE BOX:

Innuos ZENith Mk3 1TB Music Server

Mains Cable

2m Ethernet Cable

Getting Started leaflet
